  2. SPRING HINGE - 304 STAINLESS STEEL - 4 DIFFERENT SIZES AVAILABLE - MOD. CMSAS
Product Image

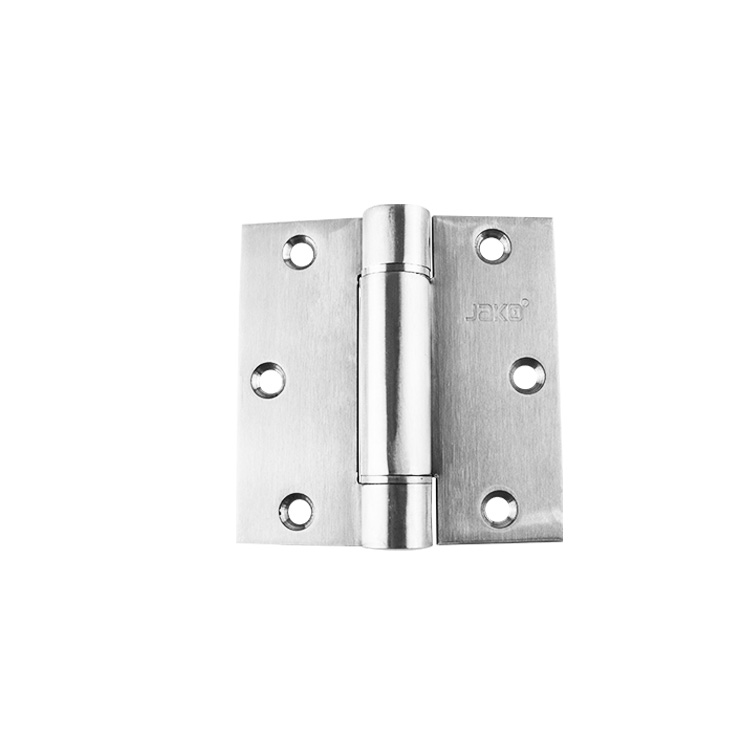

SPRING HINGE - 304 STAINLESS STEEL - 4 DIFFERENT SIZES AVAILABLE - MOD. CMSAS

Add to Cart
SPRING HINGE - 304 STAINLESS STEEL - 4 DIFFERENT SIZES AVAILABLE - MOD. CMSAS
BISAGRA DE RESORTE 89mm x 89mm x 2mm - 114mm x 114mm x 2mm MOD. CMSAS
BISAGRA DE RESORTE 89mm x 89mm x 2mm - 114mm x 114mm x 2mm MOD. CMSAS
BISAGRA DE RESORTE 89mm x 89mm x 2mm - 114mm x 114mm x 2mm MOD. CMSAS
BISAGRA DE RESORTE 89mm x 89mm x 2mm - 114mm x 114mm x 2mm MOD. CMSAS
  1. SPRING HINGE - 304 STAINLESS STEEL - 4 DIFFERENT SIZES AVAILABLE - MOD. CMSAS
  2. BISAGRA DE RESORTE 89mm x 89mm x 2mm - 114mm x 114mm x 2mm MOD. CMSAS
  3. BISAGRA DE RESORTE 89mm x 89mm x 2mm - 114mm x 114mm x 2mm MOD. CMSAS
  4. BISAGRA DE RESORTE 89mm x 89mm x 2mm - 114mm x 114mm x 2mm MOD. CMSAS
  5. BISAGRA DE RESORTE 89mm x 89mm x 2mm - 114mm x 114mm x 2mm MOD. CMSAS

SPRING HINGE - 304 STAINLESS STEEL - 4 DIFFERENT SIZES AVAILABLE - MOD. CMSAS

Base material: 304 Stainless Steel
Finishes: Satin US32D, Polished, Black
Adjustable tension spring mechanism allows the door to close automatically
Allows for various closing speeds
The spring tension can be increases/ decreased with included allen key
Includes wood screws
Thickness: 1/16"

LOAD CAPACITY: 88 Lb - 132 Lb (x3 Hinges)

Days
Hours
Mins
Secs
3
L2239X50SS-SET
  • FINISH

  • MEASURE

This combination does not exist.


CALL US FOR PRICE
Contact Us
JAKO

All measurements are approximate


Base material304 Stainless Steel
FinishSatin, Polished
Corner typeSquare
Type of tipFlat tip
Hole typeStandard
Plate separation1/16" - 5/64"
ScrewsWood screws and allen wrench
Item No.FinishHeight (P)Total width (W)Thickness Diameter ØLoading capacity (x3)
CMSAS003Satin US32D3-1/2"3-1/2"1/16"3/4"88 Lb
CMSAS004
Satin US32D
4"3"1/16"
3/4"
88 Lb
CMSAS005
Satin US32D
4"4"1/16"
3/4"
88 Lb
CMSAS006
Satin US32D
4-1/2"4-1/2"1/16"
3/4"
132 Lb
CMSAS003PSS
Polished3-1/2"3-1/2"1/16"
3/4"
88 Lb
CMSAS004PSS
Polished
4"3"1/16"
3/4"
88 Lb
CMSAS005PSS
Polished
4"4"1/16"
3/4"
88 Lb
CMSAS006PSS
Polished
4-1/2"4-1/2"1/16"
3/4"
132 Lb
