JNF - Fixed Free-Swinging Pivot System - Stainless Steel - Max. 220 lbs - Model JK05202

Pivot system with various mounting options.
Base material: Stainless Steel 304

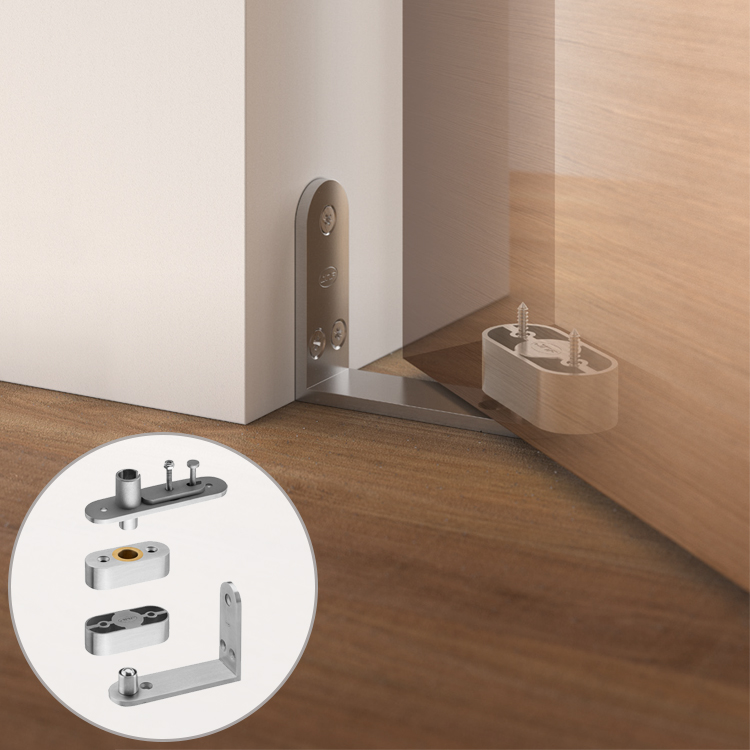

* JK05202 = Fixation direct to the door frame for hanging doors · No floor drilling required
* JK05202B = Center hung door pivot
* JK05202C = Offset door pivot
Parts prepared for doors that are mechanized.
Max. load capacity: 220LB
Min. door thickness: 1-3/8”

Days
Hours
Mins
Secs
3
L2239X50SS-SET

$ 102.35 $ 102.35 102.35000000000001 USD USD

$ 96.56

  • FINISH

  • FUNCTION

This combination does not exist.

Add to Cart
JAKO

All measurements are approximate

Material304 Stainless Steel
FinishSatin US32D
Load capacity220 Lb
Door thickness1-5/16"
TypeLength WidthHigh
Top pivot4-3/4"1-3/16"
Bottom pivot4-3/4"1-3/16"3-1/8"


Precision Motion Technology
Our Dual-Phase Torque Control ensures flawless operation for heavy-duty doors, combining effortless opening with controlled closing dynamics. Compatible with single or double-action configurations, this system accommodates doors as thin as 1.38" (35 mm), delivering consistent performance across residential, commercial, and industrial applications.

Modular Speed Calibration
Fine-tune door movement with dual-stage adjustable dampers that independently regulate acceleration and deceleration phases. The terminal speed adjustment minimizes impact noise and ensures secure latching, making it ideal for high-traffic areas or sound-sensitive environments.

Dynamic Alignment Capabilities
Featuring Multi-Axis Alignment Technology, our pivots enable post-installation adjustments to correct minor structural shifts or settling. This tool-free micro-adjustment system guarantees optimal door alignment over time, maintaining smooth operation even in dynamic building conditions.

Integrated Cable Routing System
A discreet internal channel within the pivot architecture allows concealed wiring for smart access systems, automated locks, or security sensors. This streamlined design preserves door aesthetics while enabling seamless integration of modern technologies.

Scalable Architectural Solutions
From boutique installations to large-scale projects, our ecosystem supports endless configurations. Expand functionality with reinforced brackets, environmental seals, or custom finishes, all designed to work cohesively with the core pivot system.
