  2. 3 WAY ADJUSTABLE CONCEALED HINGE 6-7/8" JK05055
Product Image

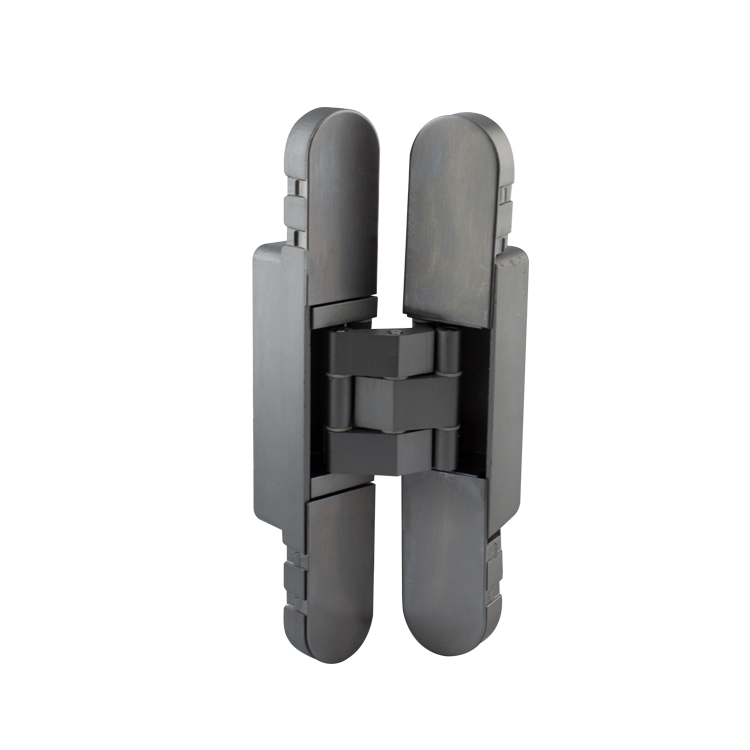

3 WAY ADJUSTABLE CONCEALED HINGE 6-7/8" JK05055

Add to Cart
3 WAY ADJUSTABLE CONCEALED HINGE 6-7/8" JK05055
BISAGRA OCULTA 175mm MOD. JK05055 (PIEZA)
BISAGRA OCULTA 175mm MOD. JK05055 (PIEZA)
BISAGRA OCULTA 175mm MOD. JK05055 (PIEZA)
  1. 3 WAY ADJUSTABLE CONCEALED HINGE 6-7/8" JK05055
  2. BISAGRA OCULTA 175mm MOD. JK05055 (PIEZA)
  3. BISAGRA OCULTA 175mm MOD. JK05055 (PIEZA)
  4. BISAGRA OCULTA 175mm MOD. JK05055 (PIEZA)

3 WAY ADJUSTABLE CONCEALED HINGE 6-7/8" JK05055

Base material: Plastic/ aluminum with stainless steel covers
Concealed hinge with 3D Adjustment
Invisible hinge for heavy duty doors
For use in interior or exterior doors
Max. opening angle of 180 degrees
Min. door thickness: 1-9/16”
Weight capacity: 132 Lb (2 hinges) 176 Lb (3 hinges)

Days
Hours
Mins
Secs
3
L2239X50SS-SET
  • FINISH

  • MEASURE

This combination does not exist.


CALL US FOR PRICE
Contact Us
JAKO

All measurements are approximate


Fabrication materialAluminum
Hinge height6-7/8"
Frame width1-3/16"
Panel/door width1-1/8"
Frame depth1"
Panel/door depth1"
Horizontal regulation± 1/16"
Vertical regulation± 1/8"
Depth regulation± 1/8"
Loading capacity x2 hinges176 Lb
Loading capacity x3 hinges132 Lb
CertificationsFire proof
Door typeWood
Minimum door thickness1-9/16"
Maximum door opening angle180 degrees
