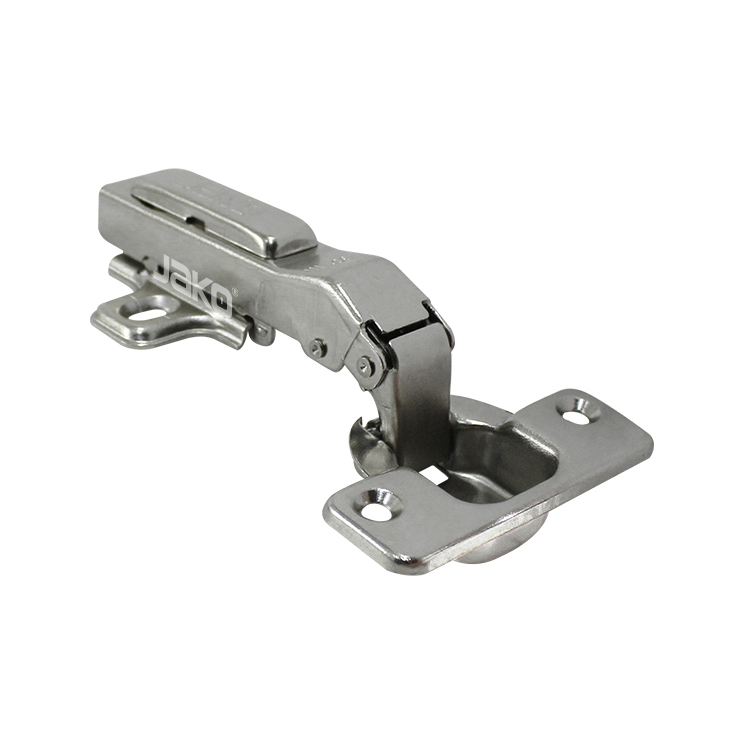

INSTALLATION IN 30º FIXED 1-3/8" (PAIR) MOD. C98
INSTALLATION IN 30º FIXED 1-3/8" (PAIR) MOD. C98
CUP DIAMETER: 1-3/8"
OPENING DEGREE: 95º
LOAD CAPACITY PER PIECE: 8 LBS
3D Adjustable base
Material: Steel
Bore depth: 1/2”
Drilling distance: 1/8” - 1/4”
Door thickness: 9/16” - 15/16”
Base: Clip-on
For use on cabinet or closet doors
NOTE:
Led light for concealed hinge Cod.LJ77 (Sold separately)
Soft close adapter Cod.M022 (Sold separately)
Cover plate for concealed hinge Cod.HBK02 (Sold Separately)
Days
Hours
Mins
Secs
L2239X50SS-SET
All measurements are approximate
| Item No. | Door position | Installation angle | Base fixing type | Closing mechanism |
C98N616 |
Angled Full Overlay | 30º | Screws | Free Swing |
C98W616 |
Angled Overlay | 30º | Screws | Free Swing |
C98F6A6 |
Angled Half Overlay | 30º | Screws | Free Swing |
