  2. HEAVY DUTY HINGE WITH SOFT STOP SYSTEM 1-9/16" (PAIR) MOD. C80
Product Image

HEAVY DUTY HINGE WITH SOFT STOP SYSTEM 1-9/16" (PAIR) MOD. C80

Add to Cart
HEAVY DUTY HINGE WITH SOFT STOP SYSTEM 1-9/16" (PAIR) MOD. C80
BISAGRA GRAN ESPESOR CON CIERRE SUAVE 40mm (PAR) MOD. C80
BISAGRA GRAN ESPESOR CON CIERRE SUAVE 40mm (PAR) MOD. C80
BISAGRA GRAN ESPESOR CON CIERRE SUAVE 40mm (PAR) MOD. C80 (copia)
BISAGRA GRAN ESPESOR CON CIERRE SUAVE 40mm (PAR) MOD. C80 (copia)
  1. HEAVY DUTY HINGE WITH SOFT STOP SYSTEM 1-9/16" (PAIR) MOD. C80
  2. BISAGRA GRAN ESPESOR CON CIERRE SUAVE 40mm (PAR) MOD. C80
  3. BISAGRA GRAN ESPESOR CON CIERRE SUAVE 40mm (PAR) MOD. C80
  4. BISAGRA GRAN ESPESOR CON CIERRE SUAVE 40mm (PAR) MOD. C80 (copia)
  5. BISAGRA GRAN ESPESOR CON CIERRE SUAVE 40mm (PAR) MOD. C80 (copia)

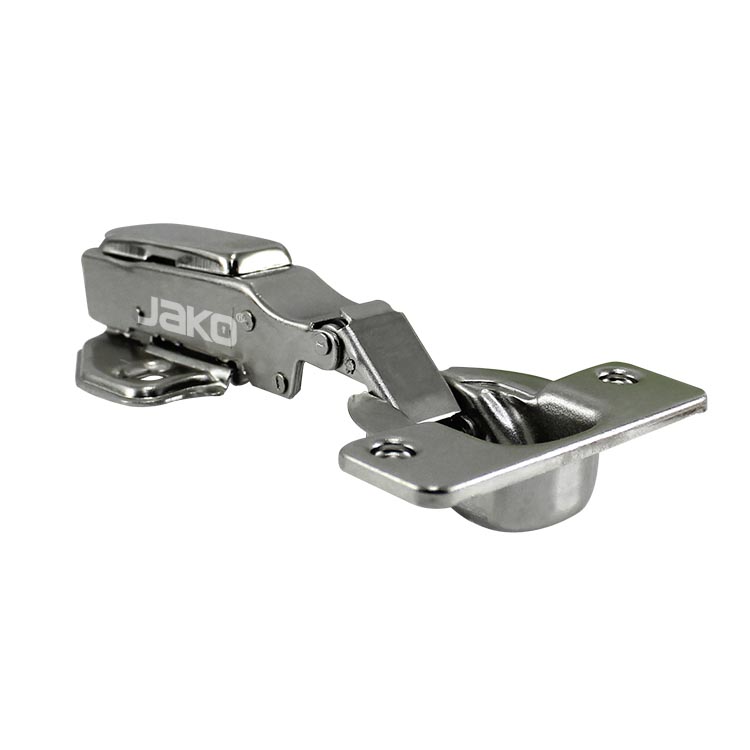

HEAVY DUTY HINGE WITH SOFT STOP SYSTEM 1-9/16" (PAIR) MOD. C80

SOFT-STOP SYSTEM
CUP DIAMETER: 1-9/16"
OPENING DEGREE: 95º
LOAD CAPACITY PER PIECE: 8 LBS
Material: Steel
Finish: Polished
Bore depth: 1/2"
Sold by pair
Drilling distance: 1/8” - 9/16”
Door thickness: 9/16” - 1-9/16”
For Heavy duty doors (Max. 1-9/16”)
Base: Clip-on
For use on cabinet or closet doors

NOTE:
Led light for concealed hinge Cod.LJ77

Days
Hours
Mins
Secs
3
L2239X50SS-SET
  • ÁNGULO DE APERTURA

  • LOAD CAPACITY

  • FIJACIÓN

  • CLOSING MECHANISM

  • DOOR POSITION

This combination does not exist.


CALL US FOR PRICE
Contact Us
JAKO

All measurements are approximate


Item No.Door positionOverlay (A)Base fixing typeClosing mechanism



C80A697


Full Overlay



C=0



Screws



Soft-Close



C80B697


Half Overlay



C=9



Screws



Soft-Close



C80C697


Inset



C=24



Screws



Soft-Close
