  2. HEAVY DUTY BALL BEARING BUTT HINGE - 304 STAINLESS STEEL - 8" x 4" x 3/16" - MOD. CMJ084-7
Product Image

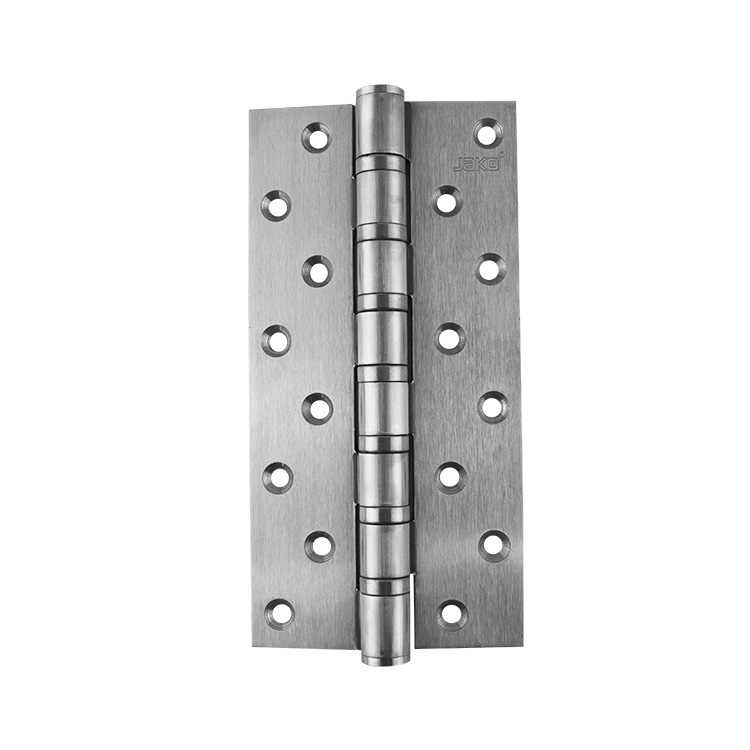

HEAVY DUTY BALL BEARING BUTT HINGE - 304 STAINLESS STEEL - 8" x 4" x 3/16" - MOD. CMJ084-7

Add to Cart
HEAVY DUTY BALL BEARING BUTT HINGE - 304 STAINLESS STEEL - 8" x 4" x 3/16" - MOD. CMJ084-7
BISAGRA DE LIBRO 102mm x 203mm x 102mm MOD. CMJ084-7
BISAGRA DE LIBRO 102mm x 203mm x 102mm MOD. CMJ084-7
BISAGRA DE LIBRO 102mm x 203mm x 102mm MOD. CMJ084-7
  1. HEAVY DUTY BALL BEARING BUTT HINGE - 304 STAINLESS STEEL - 8" x 4" x 3/16" - MOD. CMJ084-7
  2. BISAGRA DE LIBRO 102mm x 203mm x 102mm MOD. CMJ084-7
  3. BISAGRA DE LIBRO 102mm x 203mm x 102mm MOD. CMJ084-7
  4. BISAGRA DE LIBRO 102mm x 203mm x 102mm MOD. CMJ084-7

HEAVY DUTY BALL BEARING BUTT HINGE - 304 STAINLESS STEEL - 8" x 4" x 3/16" - MOD. CMJ084-7

Base material: 304 Stainless steel
Finish: Satin US32D
Ball bearings: 7
Fixed bolt.
Knuckles: 8
Grade: 1
Includes wood screws
Swaging: 2.5 - 3.0mm
Load Capacity (x2 Hinges): 353 Lb
Load Capacity (x3 Hinges): 440 Lb
Thickness: 3/16”

Days
Hours
Mins
Secs
3
L2239X50SS-SET
  • FINISH

  • MEASURE

This combination does not exist.


CALL US FOR PRICE
Contact Us
JAKO

All measurements are approximate


Base Material304 Stainless Steel
FinishSatin US32D
Height (P)8"
Total Width (W)4"
Thickness3/16"
Diameter (Ø)11/16"
Stainless Steel ball bearings7
Knuckles8
Corner typeSquare
Type of tipFlat tip
Hole typeZigzag to the right
Bolt typeFixed
Plate separation3/32" - 1/8"
Load Capacity (x2)353 Lb
Load Capacity (x3)440 Lb
Screws Includes wood screws
