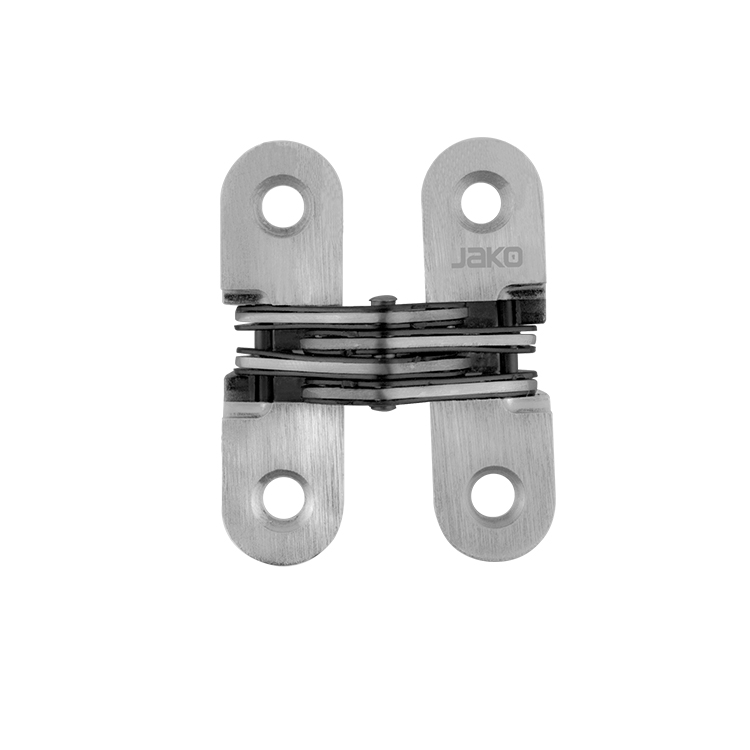

3 WAY CONCEALED HINGE - 5 DIFFERENT SIZES AVAILABLE - MOD. BC

Max. door width: 35-7/16”
Opening angle: 180°
Door type: Wood
Weight capacity:
BC4513- 15 Lb (2 hinges) 23 Lb (3 hinges)
BC6013- 22 Lb (2 hinges) 33 Lb (3 hinges)
BC7016- 44 Lb (2 hinges) 66 Lb (3 hinges)
BC9519- 110 Lb (2 hinges) 165 Lb (3 hinges)
BC11828- 154 Lb (2 hinges) 231 Lb (3 hinges)

Days
Hours
Mins
Secs
3
L2239X50SS-SET
  • FINISH

  • HEIGHT

This combination does not exist.


CALL US FOR PRICE
Contact Us
JAKO

All measurements are approximate


Item No.BC4513BC6013BC7016BC9519BC11828
FinishesSatinSatinSatinSatin, BlackSatin, Bronze
Fabrication materialStainless SteelStainless SteelStainless SteelStainless SteelStainless Steel
Hinge height1-3/4"2-3/8"2-3/4"3-3/4"4-5/8"
Frame width 1/2"1/2"5/8"3/4"1-1/8"
Panel/door width1/2"1/2"5/8"3/4"1-1/8"
Frame depth11/16"11/16"7/8"1-1/16"1-5/8"
Panel/door depth11/16"11/16"7/8"1-1/16"1-5/8"
Horizontal regulation± 1/16"± 1/16"± 1/16"± 1/16"± 1/16"
Vertical regulation± 1/16"± 1/16"± 1/16"± 1/16"± 1/16"
Depth regualtion± 1/8"± 1/8"± 1/8"± 1/8"± 1/8"
Loading capacity x2 hinges15 Lb22 Lb44 Lb110 Lb154 Lb
Loading hinges x3 hinges23 Lb33 Lb66 Lb165 Lb231 Lb
Door typeWood Wood Wood Wood Wood
Maximum door width 35-7/16"35-7/16"35-7/16"35-7/16"35-7/16"
Door opening angle180 degrees180 degrees180 degrees180 degrees180 degrees



Item No.Downloads
BC4513


BC6013


BC7016


BC9519


BC11828
