3 WAY ADJUSTABLE CONCEALED HINGE 7" MOD. JK05062

Add to Cart
3 WAY ADJUSTABLE CONCEALED HINGE 7" MOD. JK05062

3 WAY ADJUSTABLE CONCEALED HINGE 7" MOD. JK05062

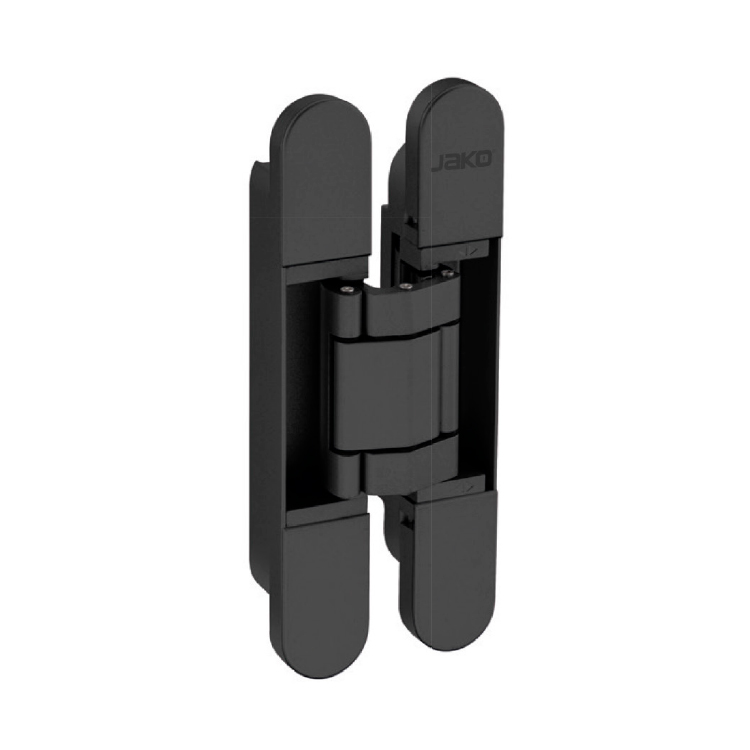

Concealed hinge with 3D Adjustment
Invisible hinge for heavy-duty doors manufactured entirely in plastic/aluminum with stainless steel covers
For use in interior or exterior doors
Minimum door thickness: 1-9/16”
Weight capacity: 176 Lb (2 hinges) 198 Lb (3 hinges)

Days
Hours
Mins
Secs
3
L2239X50SS-SET
  • FINISH

  • MEASURE

This combination does not exist.


CALL US FOR PRICE
Contact Us
JAKO

All measurements are approximate


Fabrication materialAluminum
Hinge height7"
Frame width1-1/8"
Panel/door width1-1/8"
Frame depth1"
Panel/door depth1"
Horizontal regulation± 1/16"
Vertical regulation± 1/8"
Depth regulation± 1/8"
Loading capacity x2 hinges 176 Lb
Loading capacity x3 hinges198 Lb
CertificationsFire proof
Door typeWood
Minimum door thickness1-9/16"
