  3. JNF - W Hydraulic Pivot System - Soft close - Heavy-Duty - Max. 220 lbs - Model JK05204
Product Image

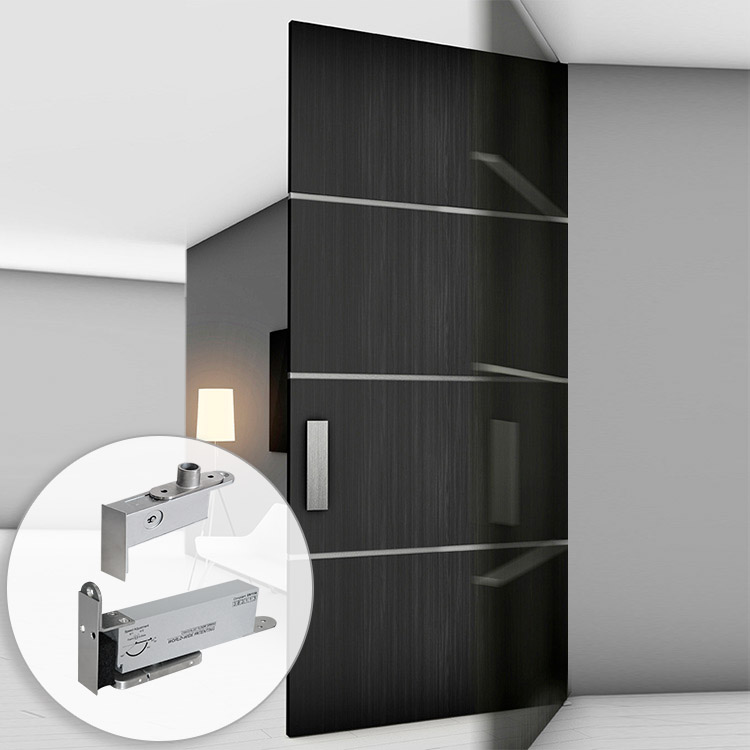

JNF - W Hydraulic Pivot System - Soft close - Heavy-Duty - Max. 220 lbs - Model JK05204

$ 405,38 $ 450,77 450.77 USD USD

$ 382,43

Add to Cart
JNF - Hydraulic Pivot System - Soft close - Heavy-Duty - Max. 220 lbs - Model JK05214
JNF - W Hydraulic Pivot System - Soft close - Heavy-Duty - Max. 220 lbs - Model JK05204
PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
  1. JNF - Hydraulic Pivot System - Soft close - Heavy-Duty - Max. 220 lbs - Model JK05214
  2. JNF - W Hydraulic Pivot System - Soft close - Heavy-Duty - Max. 220 lbs - Model JK05204
  3. PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
  4. PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
  5. PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
  6. PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
  7. PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
  8. PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
  9. PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
  10. PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
  11. PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204
  12. PIVOTE HIDRAÚLICO CON CIERRE SUAVE CAP. 100KG MOD. JK05204

JNF - W Hydraulic Pivot System - Soft close - Heavy-Duty - Max. 220 lbs - Model JK05204

Base material: 304 Stainless Steel.
Finish: Satin US32D
Special PVD Finishes: Titanium Gold, Black, Copper, and Chocolate
Revolutionized concealed pivot with integrated soft-stop function.
International patented.
Features 2 adjustable closing speed valves.
Max. door width: 39-3/8”
Máx. load capacity: 220 lbs (100 kg)
Min. door thickness: 1-9/16” (40mm)
Bidirectional 90 degree hold open.
Bidirectional 180 degree opening.
Allows for door adjustments of +/- 1/8” -/4 degrees.

*** Please allow 10-12 Business days for PVD finish.

Days
Hours
Mins
Secs
3
L2239X50SS-SET

$ 405,38 $ 450,77 450.77 USD USD

$ 382,43

  • ACABADO

Esta combinación no existe.

Agregar al carrito
JAKO

All measurements are approximate


Material baseAcero inoxidable 304
AcabadoSatín
Capacidad de carga100 kg / 220 lbs
Mecanismo de cierreCierre suave ajustable rápido lento
Ancho máximo de la puerta1000 mm
Espesor mínimo de la puerta40 mm
Apertura bidireccional sostenida90°
Rango de movimiento bidireccional150°
Ajuste horizontal± 3mm
Ajuste de profundidad± 3mm
Ajuste del punto de cierre± 4°
CódigoLargoAnchoProfundidad
Pivote inferior250 mm48 mm100 mm
Pivote superior135 mm30 mm72 mm

Elevate Door Performance with Advanced Hydraulic Pivot Systems
*Heavy-Duty Solutions for Loads Up to 1,100 lbs (500 kg)*

Precision Movement Control
Experience seamless door operation with our patented Dynamic Torque Management technology. Designed for both single and double-action doors, this system ensures effortless opening and controlled closing, even for oversized or heavy installations. Compatible with standard door thicknesses starting at 1.38 in (35 mm), it eliminates strain while maintaining consistent performance.

Customizable Closing Dynamics
Fine-tune door motion with dual-stage adjustable dampers that independently regulate initial and terminal closing speeds. This precision engineering guarantees secure engagement with locking mechanisms, reducing noise and wear for reliable, whisper-quiet operation.

Adaptive Alignment Technology
Our pivots feature multi-directional calibration to correct misalignments caused during installation or from building shifts over time. Ensure flawless door positioning and long-term stability with tool-free micro-adjustments that compensate for structural variances.
