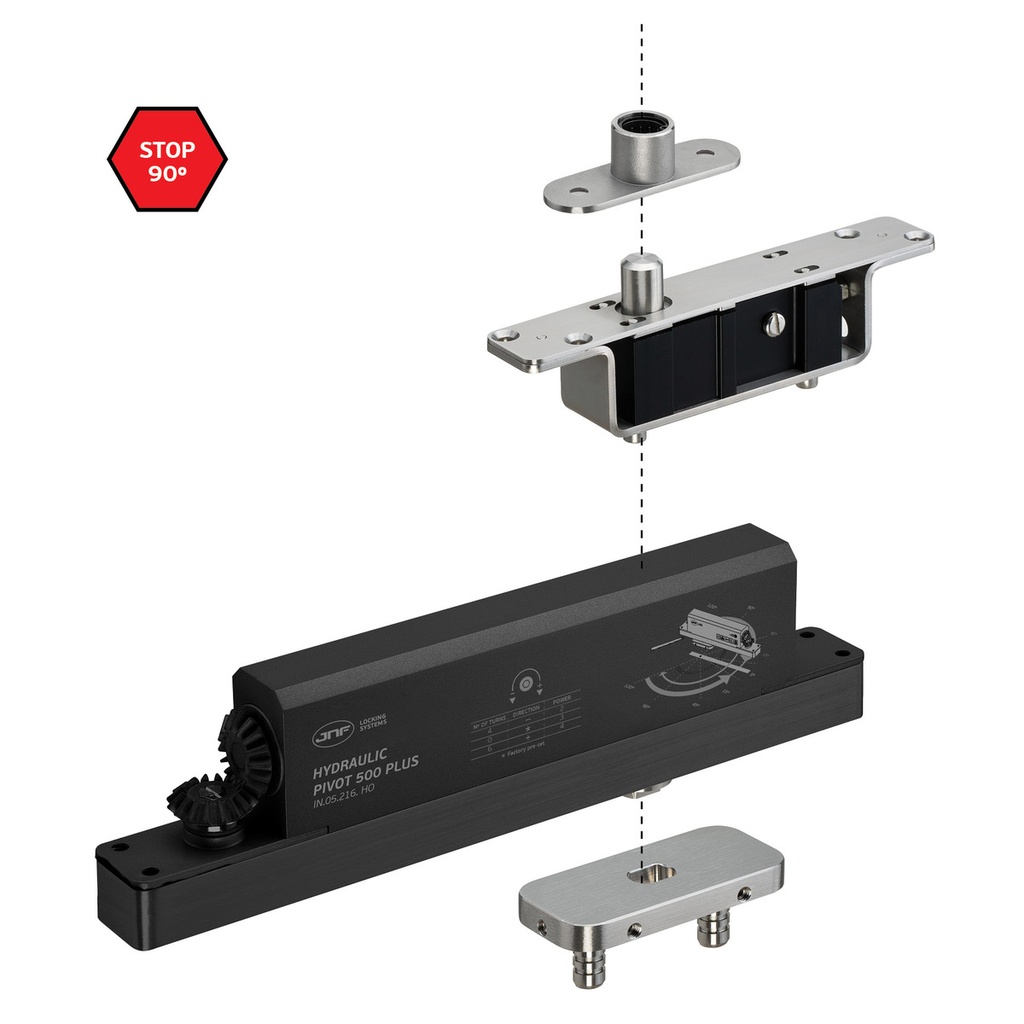

Hydraulic pivoting system for doors up to 500kg.

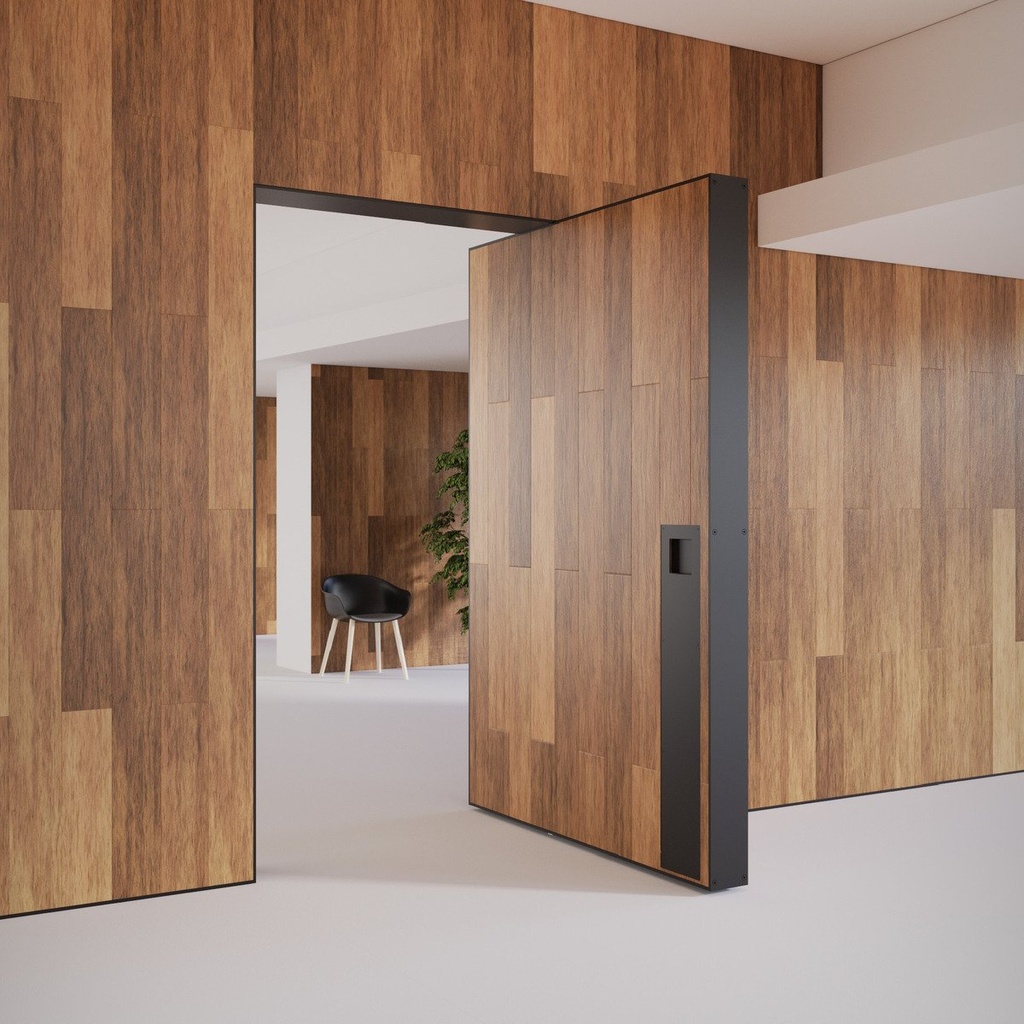

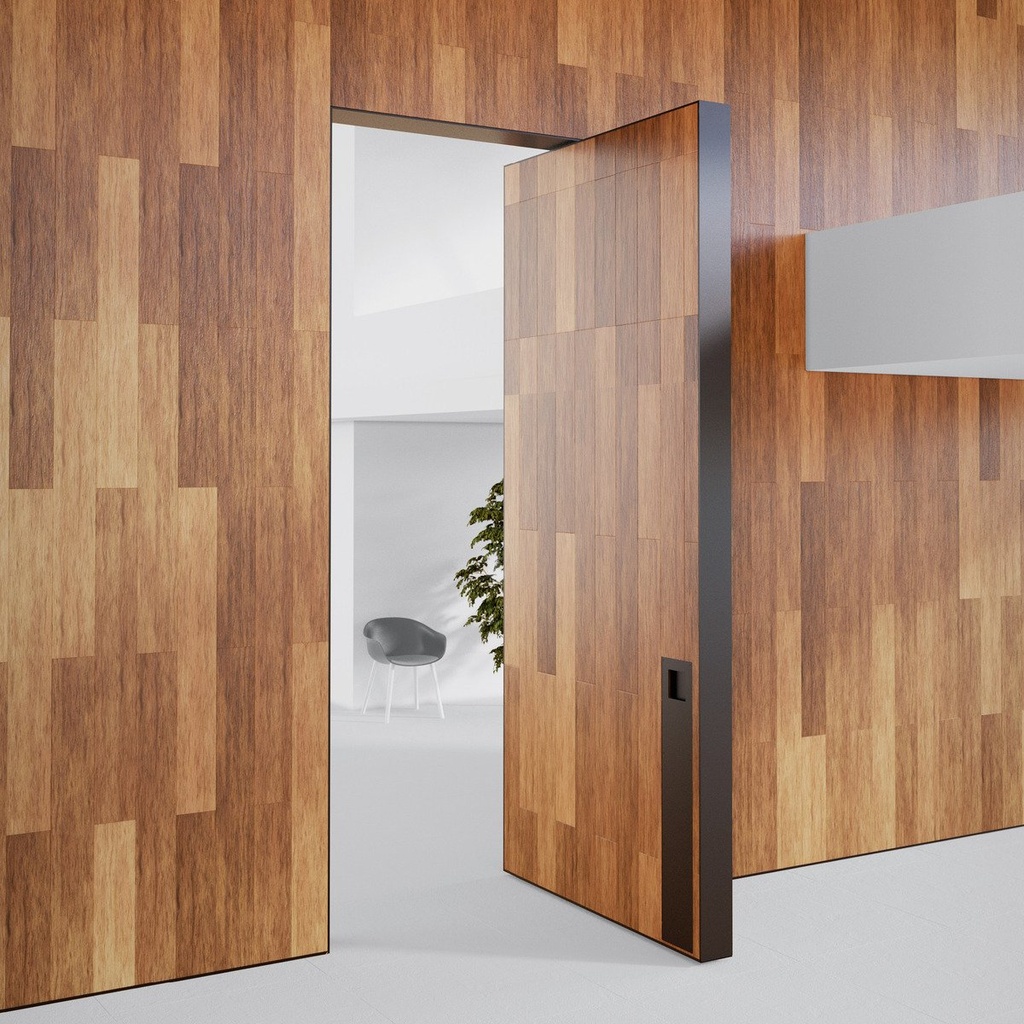

The doors can be single or double action, with thickness from 60mm. The system is hidden inside the door, with only a small base on the floor, with bidirectional regulation and a rotation point on the roof or upper frame of the door with built-in bearing.

Main Features of the IN.05.216.HO Hydraulic Pivot:

• Adjustable Damper and Latching Speed
• Adjustable Backcheck
• Power Adjustment (from 2-4)
• Maximum door weight: 500 kg (1100 lbs)
• Maximum door width: 3000 mm (118”)
• Minimum Wood Thickness: 50 mm (2”)
• Minimum pivot point offset: 150 mm (5.91”)
• Gap at floor: 14 mm (0.55”)
• Gap at header: 6 mm (0.24”)
• Permanent Power Transfer through grommeted spindle in top pivot.
