JNF - 60 Edge Hydraulic Pivot - Soft Close - Max. 132lbs - Model JK05203HO
$ 523.45 $ 523.45 USD
$ 523.45
JNF - 60 Edge Hydraulic Pivot - Soft Close - Max. 132lbs - Model JK05203HO

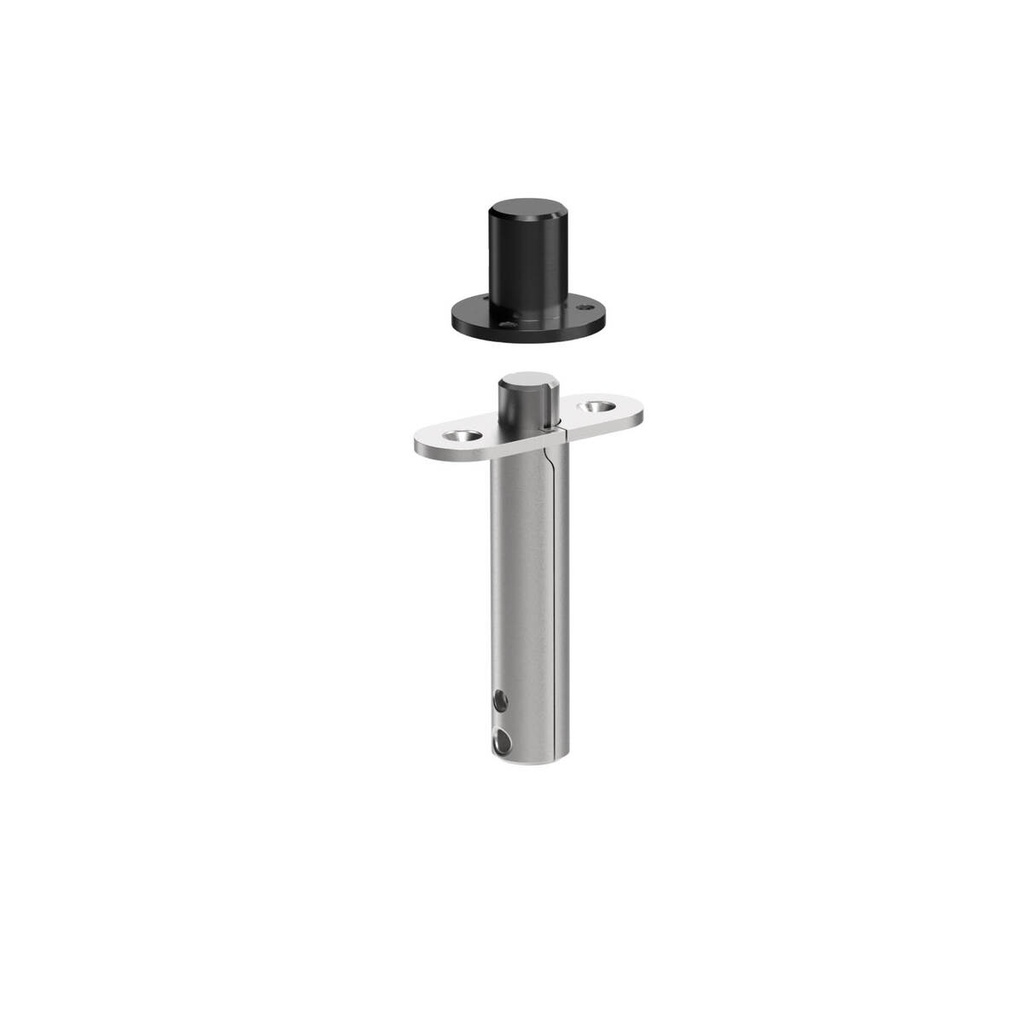

Hydraulic Pivot Set with 90° Hold Open
60 EDGE is the ideal pivot solution for interior doors up to 60kg/132lbs, where design calls for discretion, softness, and balanced proportions. Installed at the door edge, with a fixed pivot axis 65mm from the edge, it enables a clear opening of approximately 850mm, optimizing spatial flow with visual lightness.
60 EDGE FEATURES
- Adjustable Damper Speed
- Hold positions at ±90° and 0°
- Maximum door weight : 60kg (132 lbs)
- Maximum door width : 1000mm (39.37”)
- Minimum Wood Thickness : 35mm (1.38”)
- Fixed pivot point offset : 50mm (1.97”)
- Gap at floor : 12.5mm (0 .49”)
- Gap at header : 6mm (0.24”)
- Material : Stainless Steel EN 1.4301 (AISI 304)
All measurements are approximate
