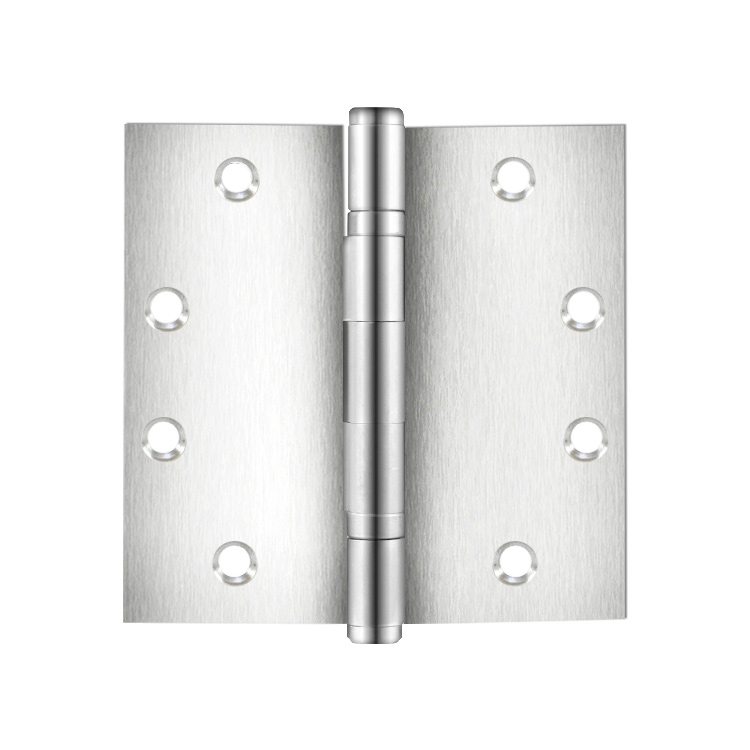

FULL MORTISE BALL BEARING BUTT HINGE - SOLID BRASS - MOD. 10-BBORB

Add to Cart
FULL MORTISE BALL BEARING BUTT HINGE - SOLID BRASS - MOD. 10-BBORB

FULL MORTISE BALL BEARING BUTT HINGE - SOLID BRASS - MOD. 10-BBORB

Base material: Solid Brass
Finishes: Satin US32D, Matt brass, Black
Ball-bearings: 2
Knuckles: 5
Includes: Wood screws
Swaging: 1/16" - 1/8"
Hinge thickness: 1/8"

3.5 x 3.5" Load capacity: 88 - 110 Lb (x3 hinges)
4 x 4" Load capacity: 121 - 132 Lb (x3 hinges)
4.5 x 4.5" Load capacity: 132 - 154 Lb (x3 hinges)

Days
Hours
Mins
Secs
3
L2239X50SS-SET
  • FINISH

  • MEASURE

This combination does not exist.


CALL US FOR PRICE
Contact Us
MAGNUM

All measurements are approximate


Base materialSolid brass
FinishSatin US32D, Matt Brass, Black
Stainless steel ball bearings2
Knuckles5
Corner typeSquare
Type of tipFlat tip
Hole typeStandard
Plate separation2.5 - 3.0mm
ScrewsWood screws

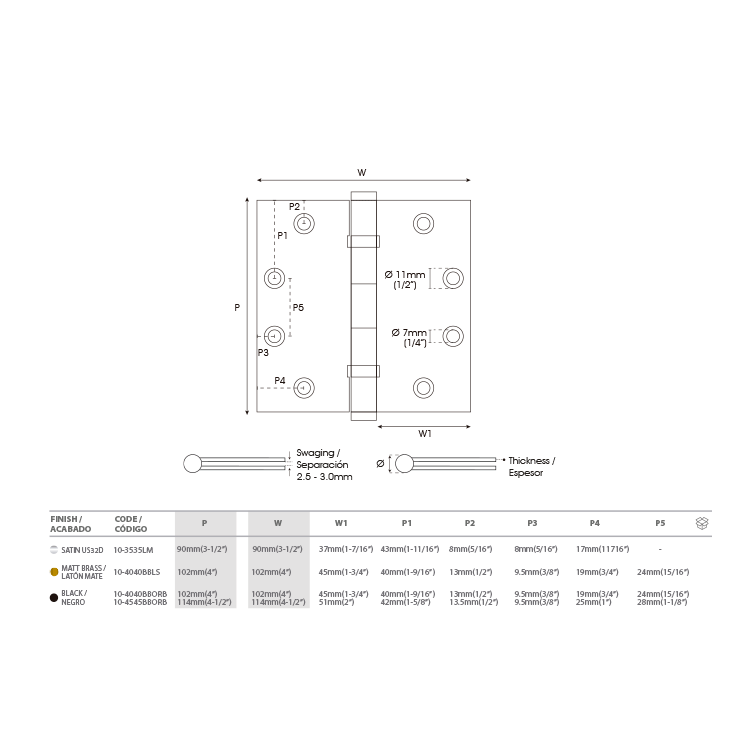

Item No.FinishHeight (P)Total Width (W)Thickness Diameter ØLoad capacity (x3)
10-3535LMSatin US32D3-1/2"3-1/2"1/8"1/2"--
10-4040BBLSMatt Brass4"4"1/8"1/2"88 - 110 Lb
10-4040BBORBBlack4"4"1/8"1/2"121 - 132 Lb
10-4545BBORBBlack4-1/2"4-1/2"1/8"1/2"132 - 154 Lb
