  2. GRADE 1 - MORTISE HINGE STAINLESS STEEL FIRE RATED UL - 4.5" x 4.5" x 3/16" - (4 BALL BEARINGS) - MOD. CMJ030-4UL
Product Image

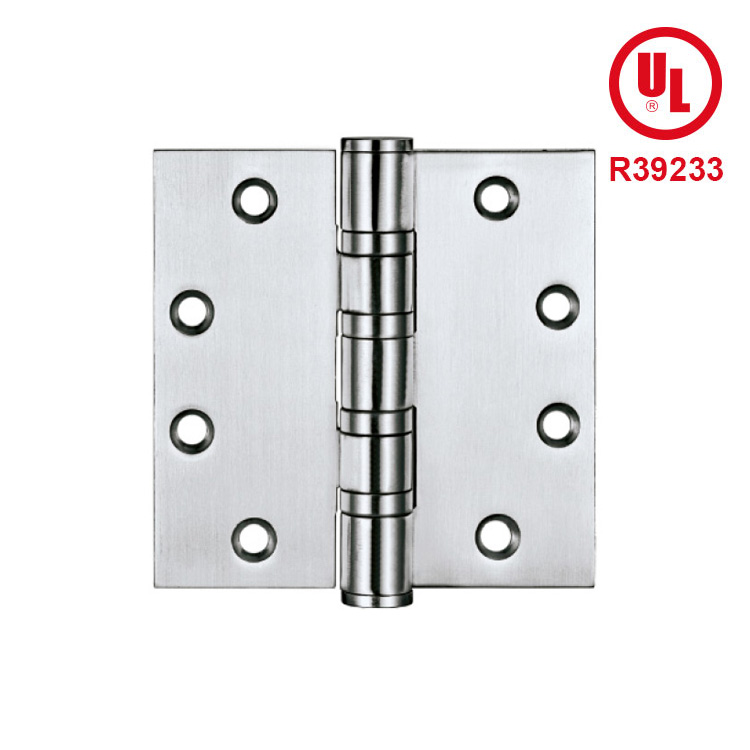

GRADE 1 - MORTISE HINGE STAINLESS STEEL FIRE RATED UL - 4.5" x 4.5" x 3/16" - (4 BALL BEARINGS) - MOD. CMJ030-4UL

Add to Cart
GRADE 1 - MORTISE HINGE STAINLESS STEEL FIRE RATED UL - 4.5" x 4.5" x 3/16" - (4 BALL BEARINGS) - MOD. CMJ030-4UL
BISAGRA ACERO INOXIDABLE RESISTENTE AL FUEGO UL 114mm x 114mm x 4.6mm CMJ030-4UL
BISAGRA ACERO INOXIDABLE RESISTENTE AL FUEGO UL 114mm x 114mm x 4.6mm CMJ030-4UL
BISAGRA ACERO INOXIDABLE RESISTENTE AL FUEGO UL 114mm x 114mm x 4.6mm CMJ030-4UL
BISAGRA ACERO INOXIDABLE RESISTENTE AL FUEGO UL 114mm x 114mm x 4.6mm CMJ030-4UL
BISAGRA ACERO INOXIDABLE RESISTENTE AL FUEGO UL 114mm x 114mm x 4.6mm CMJ030-4UL
BISAGRA ACERO INOXIDABLE RESISTENTE AL FUEGO UL 114mm x 114mm x 4.6mm CMJ030-4UL
  1. GRADE 1 - MORTISE HINGE STAINLESS STEEL FIRE RATED UL - 4.5" x 4.5" x 3/16" - (4 BALL BEARINGS) - MOD. CMJ030-4UL
  2. BISAGRA ACERO INOXIDABLE RESISTENTE AL FUEGO UL 114mm x 114mm x 4.6mm CMJ030-4UL
  3. BISAGRA ACERO INOXIDABLE RESISTENTE AL FUEGO UL 114mm x 114mm x 4.6mm CMJ030-4UL
  4. BISAGRA ACERO INOXIDABLE RESISTENTE AL FUEGO UL 114mm x 114mm x 4.6mm CMJ030-4UL
  5. BISAGRA ACERO INOXIDABLE RESISTENTE AL FUEGO UL 114mm x 114mm x 4.6mm CMJ030-4UL
  6. BISAGRA ACERO INOXIDABLE RESISTENTE AL FUEGO UL 114mm x 114mm x 4.6mm CMJ030-4UL
  7. BISAGRA ACERO INOXIDABLE RESISTENTE AL FUEGO UL 114mm x 114mm x 4.6mm CMJ030-4UL

GRADE 1 - MORTISE HINGE STAINLESS STEEL FIRE RATED UL - 4.5" x 4.5" x 3/16" - (4 BALL BEARINGS) - MOD. CMJ030-4UL

Fire doors rated up to and including 3 hours
UL 39233 certification
Base material: 304 Stainless Steel
Load capacity: 264 Lb ( 2 Hinges)
Ball bearings: 4
Knuckles: 5
Grade 1
Includes wood and metal screws
Swaging: 1.6 - 2.0mm
Thickness: 3/16”

Days
Hours
Mins
Secs
3
L2239X50SS-SET
  • FINISH

  • MEASURE

  • BALL BEARINGS

This combination does not exist.


CALL US FOR PRICE
Contact Us
JAKO

All measurements are approximate


Material304 Stainless Steel
FinishSatin US32D
Height (P)4-1/2"
Total width (W)4-1/2"
Width (W1)1-15/16"
GradeGrade 1
Stainless Steel ball bearings4
Knuckles5
Corner typeSquare
Tip style Flat tip
Loading capacity x2 hinges264 Lb
Hole typeStandard
Hole diameter1/4"
Bolt typeFixed
Plate separation1/16" - 5/64"
Plate thickness3/16"
Diameter Ø11/16"
ScrewsIncludes screws for wood and metal
CertificationsUL R39233 (Fire resistance for up to 3 hours)
