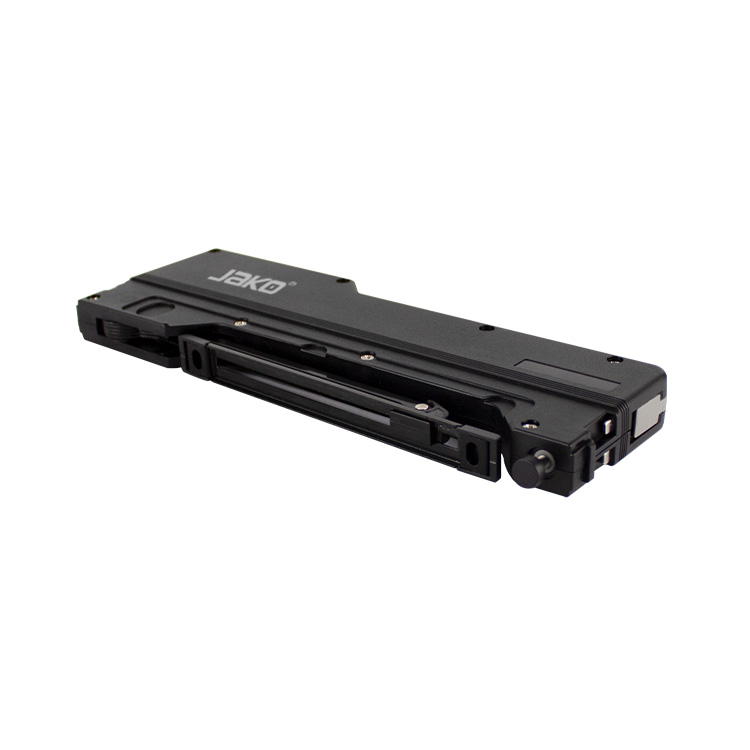

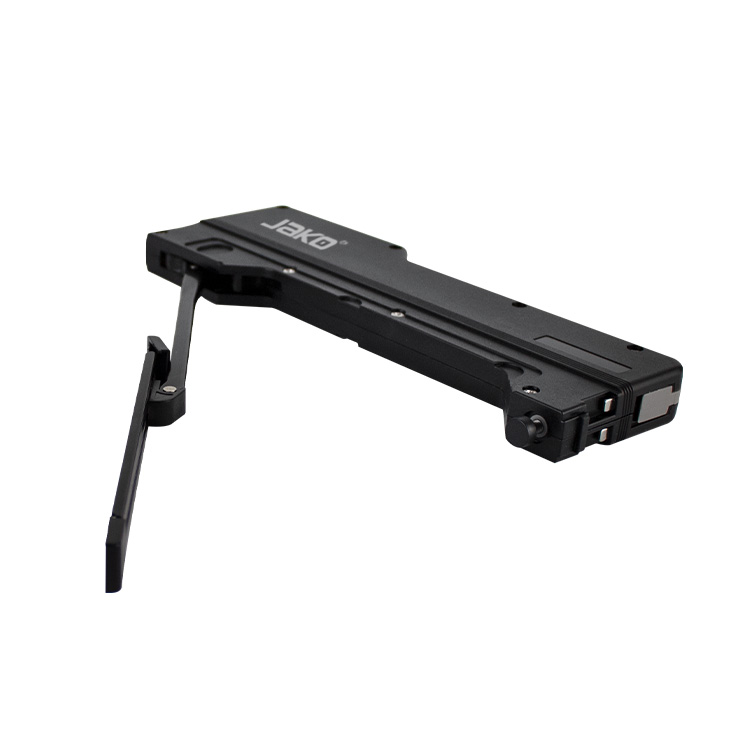

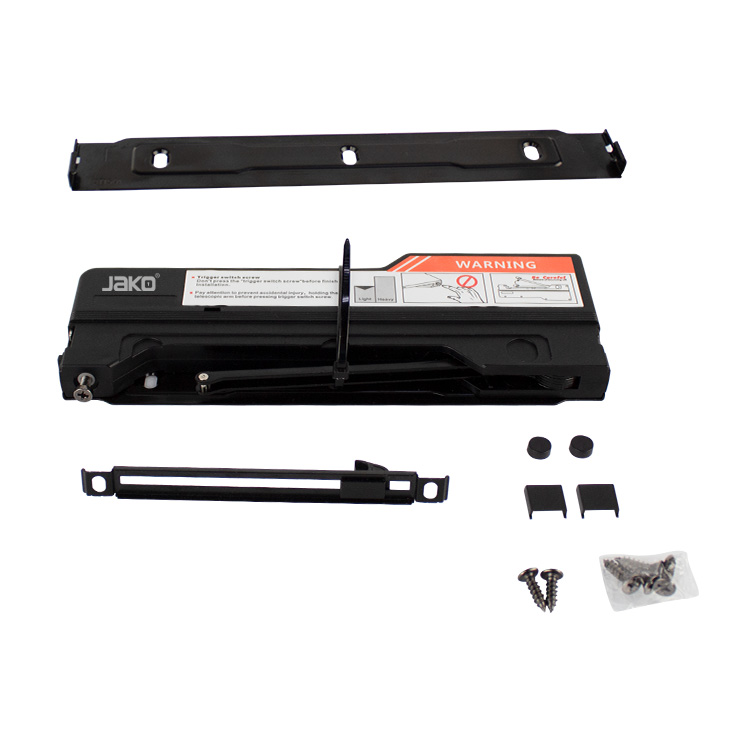

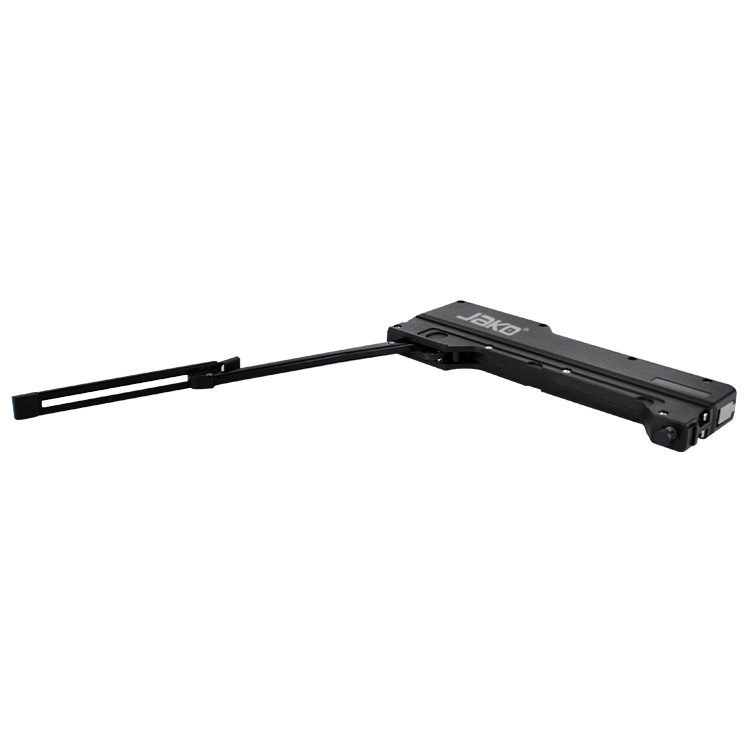

2 IN 1 SIDE-OPENING SYSTEM (PUSH OPEN AND SOFT CLOSE) MOD. JKV15

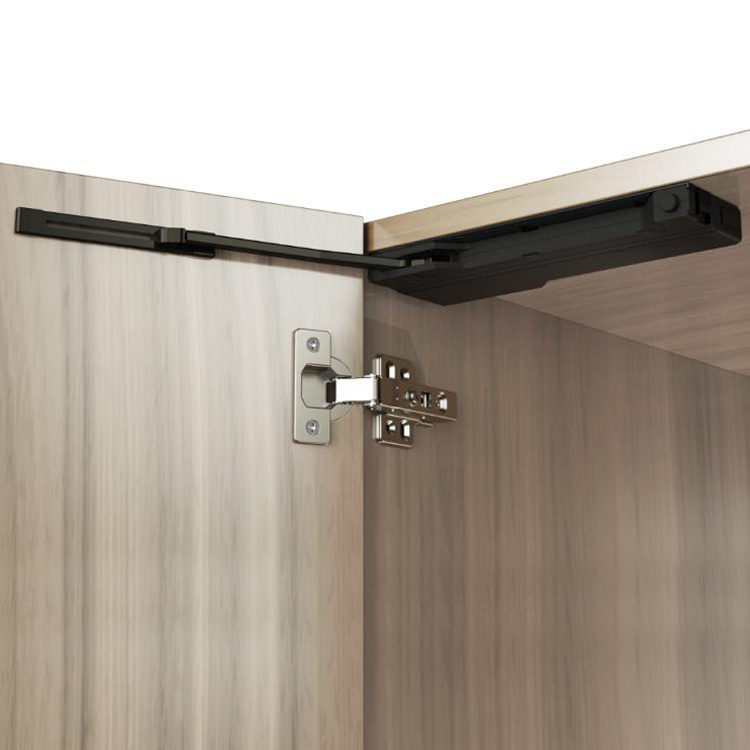

Application for closet doors, kitchen, cellars, bathroom and office cabinet doors.
It takes up little space and is easy to install.
Door type: Wood and Aluminum

LOADING CAPACITY
Mod. JKV15L:
For doors with a maximum weight of 7.5 Kg.

Mod. JKV15H:
For wooden doors with a maximum weight of 20 Kg.
For aluminum doors with a maximum weight of 25 Kg.

Finish: Black

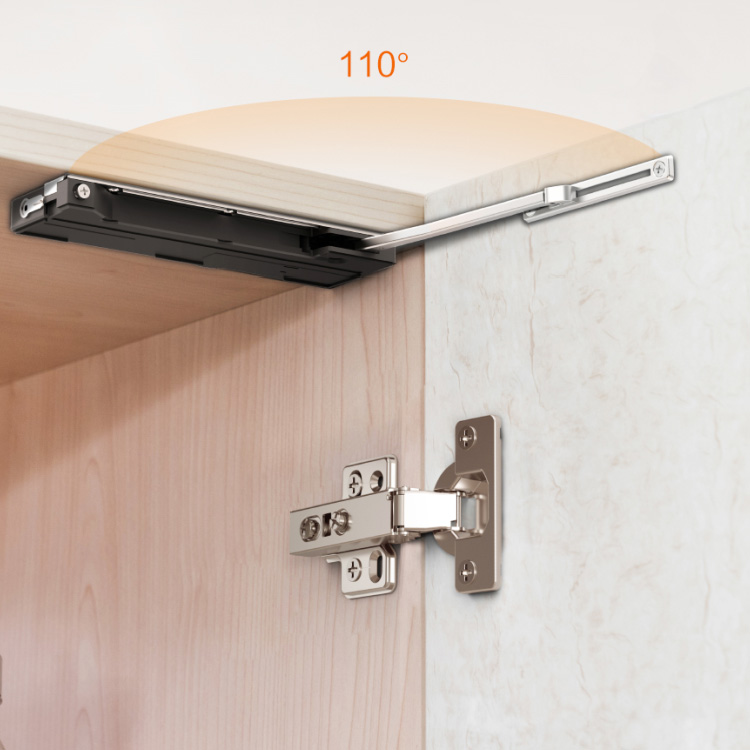

Opening angle: 110 °
Sensitivity regulation: 5mm

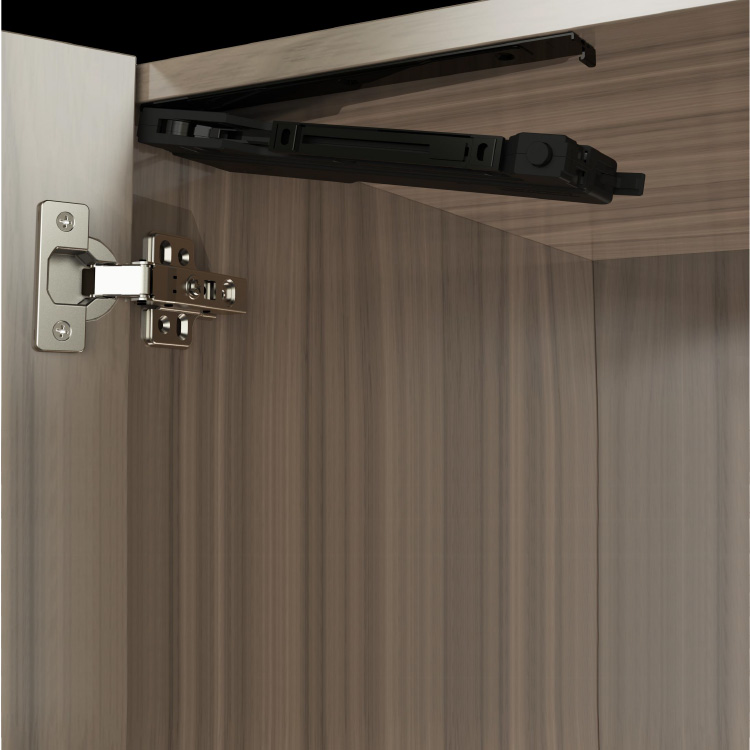

Installation: External
Not compatible with spring hinges

Days
Hours
Mins
Secs
3
L2239X50SS-SET
  • FINISH

  • LOAD CAPACITY

This combination does not exist.


CALL US FOR PRICE
Contact Us
JAKO

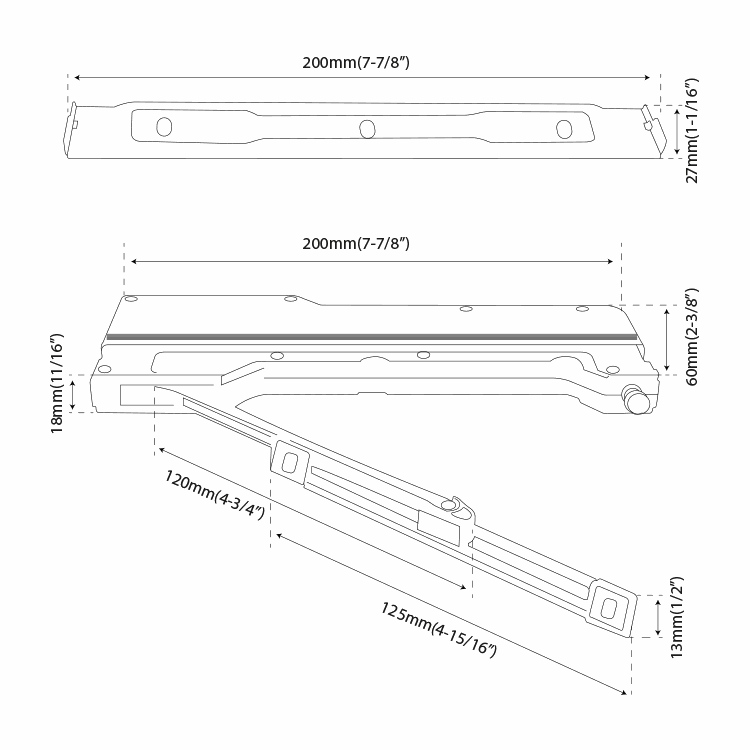

All measurements are approximate




Manufacturing materialPolycarbonate and laminated steel
FinishBlack
Opening angle110º
Sensitivity regulation 3/16"
InstallationExternal
Door typeWood and Aluminum (Limited arc width)
Compatible withSpringless hinge

Item No.JKV15LJKV15HJKV15H


Wood doorAluminum frame door
Loading capacity≤ 16.5 Lbs≤ 44 Lbs≤ 55 Lbs
Width≤ 23-5/8"≤ 23-5/8"≤ 23-5/8"
Height≤ 27-9/16"≤ 106-5/16"≤ 106-5/16"
